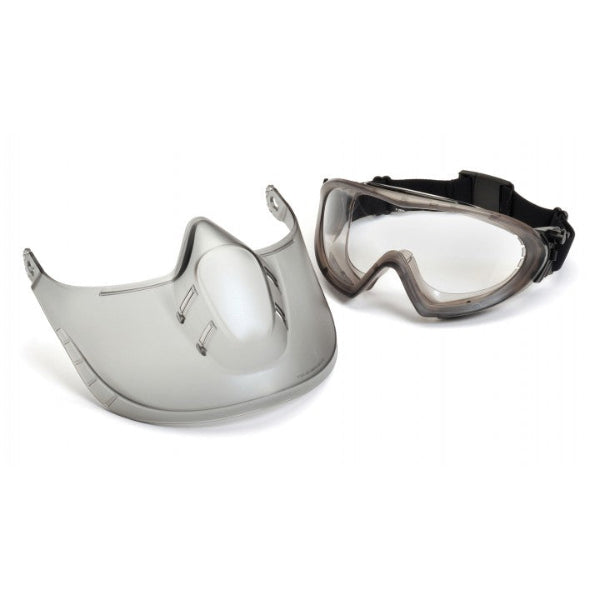

Pyramex GG504TSHIELD Anti-Fog Shield and Goggles

Frequently Bought Together

Total price $46.83

Product Description


  • Fully adjustable elastic band
  • Fits over prescription glasses
  • Lens is coated to prevent fogging
  • Soft vinyl goggle body conforms to facial contours
  • Goggle provides protection against dust and chemical splash
  • Removable vent caps allow the user to remove when more ventilation is required or leave in place for unsurpassed chemical splash resistance
  • Goggle incorporated with removable shield provides full face protection 4 ventilation holes provide appropriate airflow
  • Ratchet shield allows user to open or close in 3 positions for adjustment
  • Passes Ballistic MIL-PRF-32432 High Velocity Impact standards
  • Polycarbonate shield conforms to the face offering increased impact and dust protection
  • GG504DTSHIELD goggle has a dual pane lens
  • Goggle combined with removable shield provides full face protection
  • Four ventilation holes provide airflow


California Residents: Cancer and Reproductive Harm. For more information go to


  • Brand: Pyramex
  • Product Type: Shield
  • Model: Clear H2X AF
  • Body Color: Gray
  • Lens Color: Clear
  • Lens Treatment: H2X Anti-fog
  • Passes D3: Droplet and Splash Test
  • Passes D4: Dust Test
  • Lens Material: Polycarbonate
  • Body Material: Polycarbonate & Polyvinyl Chloride (PVC)
  • Nosepiece Material: Polyvinyl Chloride (PVC)
  • Hinge Material: Polycarbonate (PC) & Nylon
  • Strap Material: Polyester
  • Quick Release Material: Polyoxymethylene (POM)
  • Weight: 132 g
  • PD: 68 mm
  • Bridge: 45 mm
  • Lens Base: 5.5 curve
  • Lens Size Diagonal: 154 mm
  • Lens Size Vertical: 78 mm
  • Lens Thickness: 2.3 mm
  • Length (lens-tip): 91 mm
  • Width (hinge - hinge): 180 mm
  • Strap Length: 232 – 365 mm
  • Shield Material: Polycarbonate
  • Holder Material: Polycarbonate
  • Strap Material: Polyester
  • Shield Weight: 78g
  • Shield Size: 195.58 mm x 177.64 mm
  • Shield Thickness: 2.0 mm
  • Visor Material: Polyethylene Terephthalate (PET)
  • Visor Weight: 2.4 g
  • Visor Size: 32.4 mm x 6.9 mm
  • Visor Thickness: 0.1 mm
  • Bridge: 3.3 mm
  • Standards & Certifications: ANSI/ISEA Z87.1-2020 + High Impact, CAN/CSA Z94.3-2020, CE/UKCA EN 166, MIL-PRF-32432
