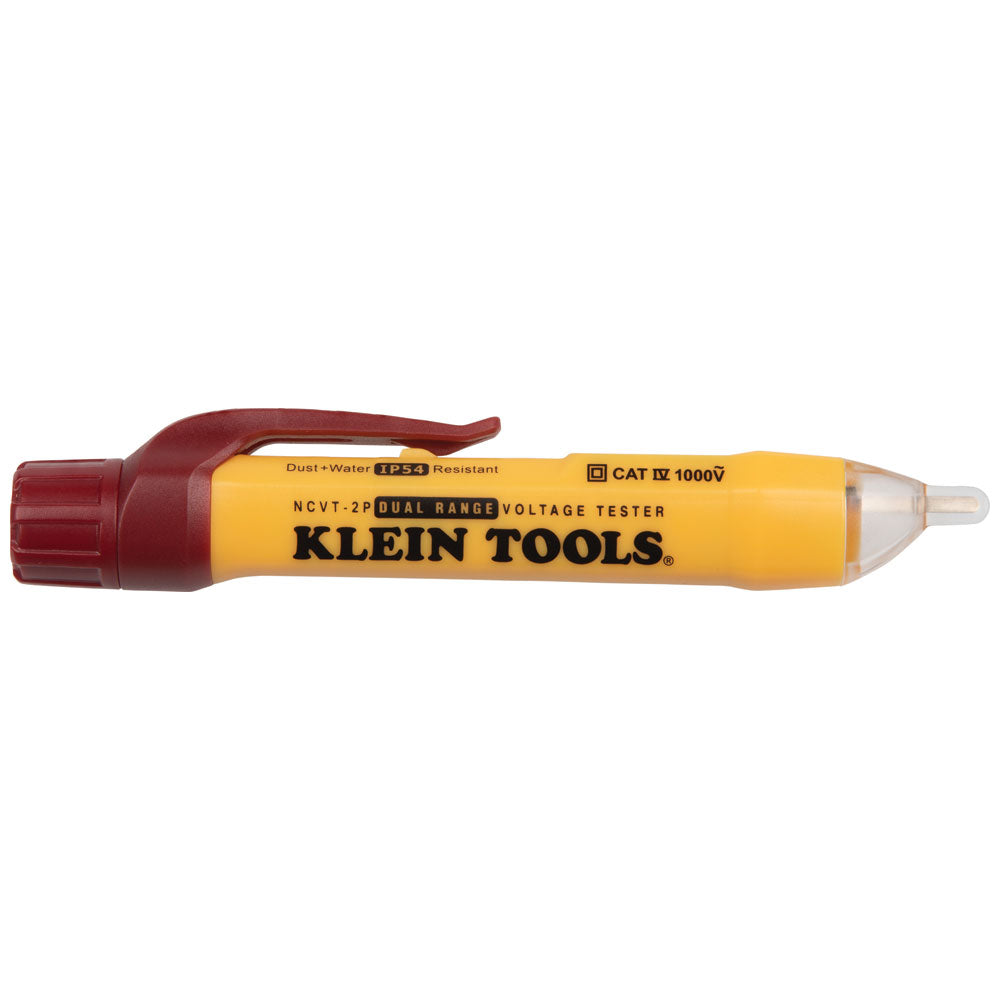

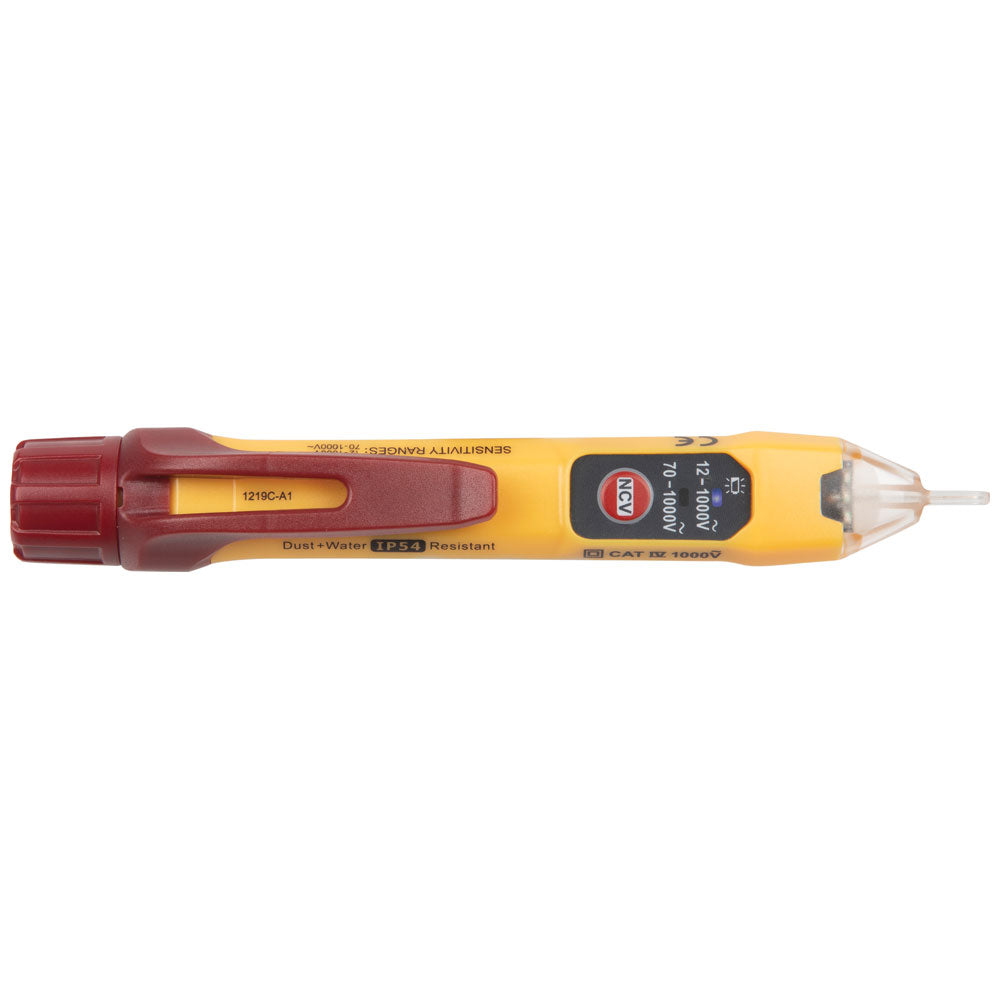

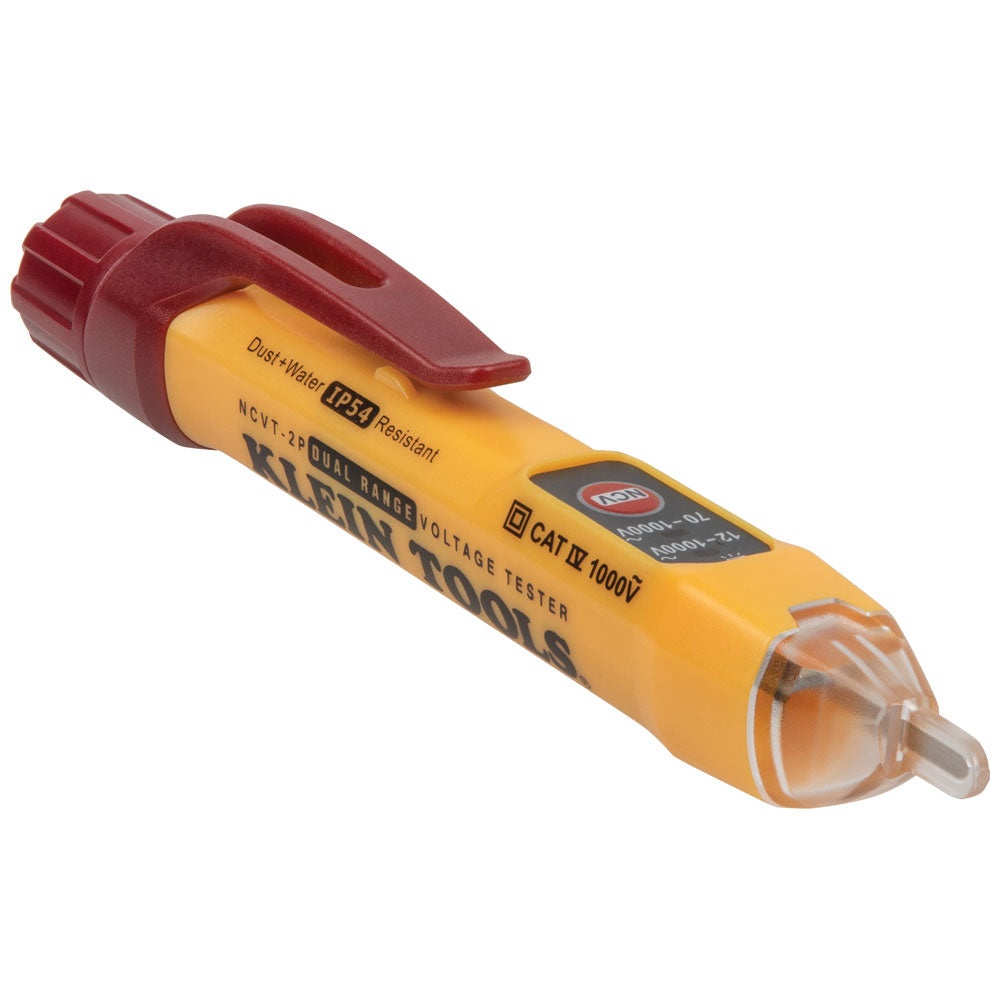

Klein Tools Dual Range Non-Contact 12-1000V AC Voltage Electrical Tester

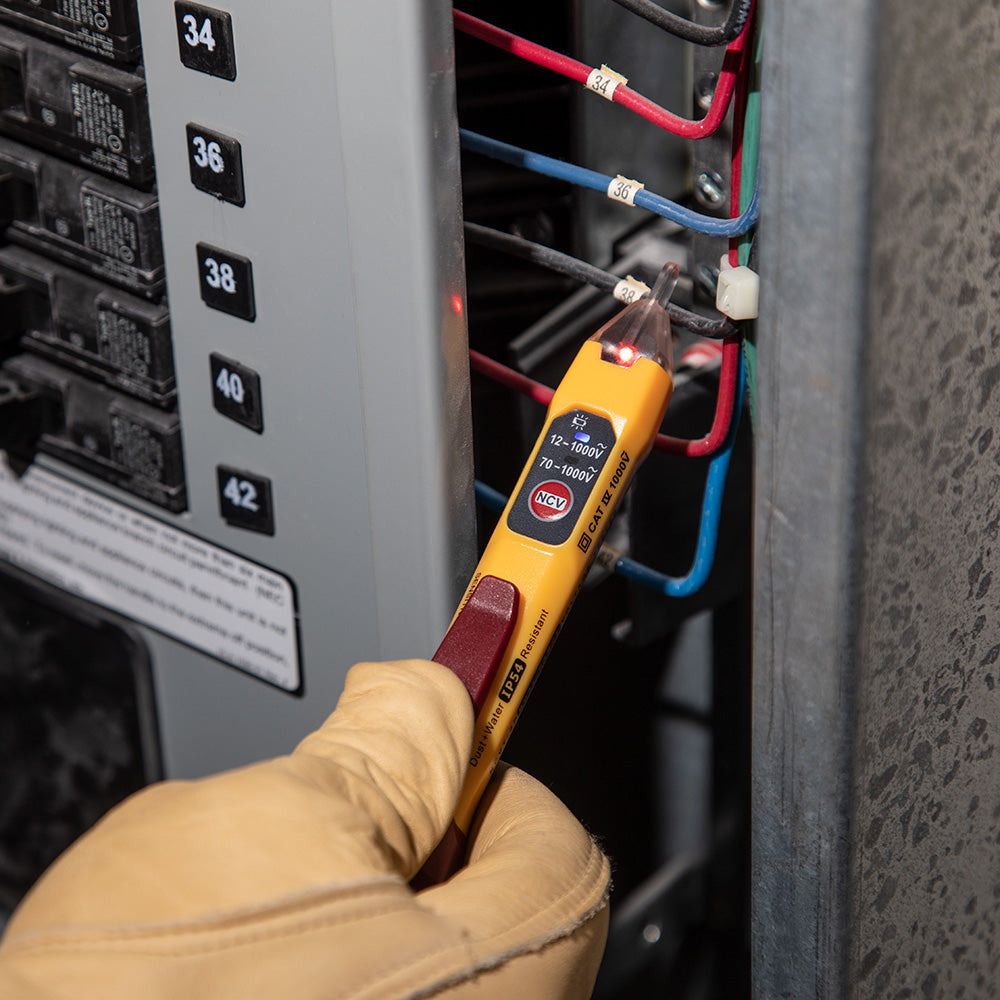

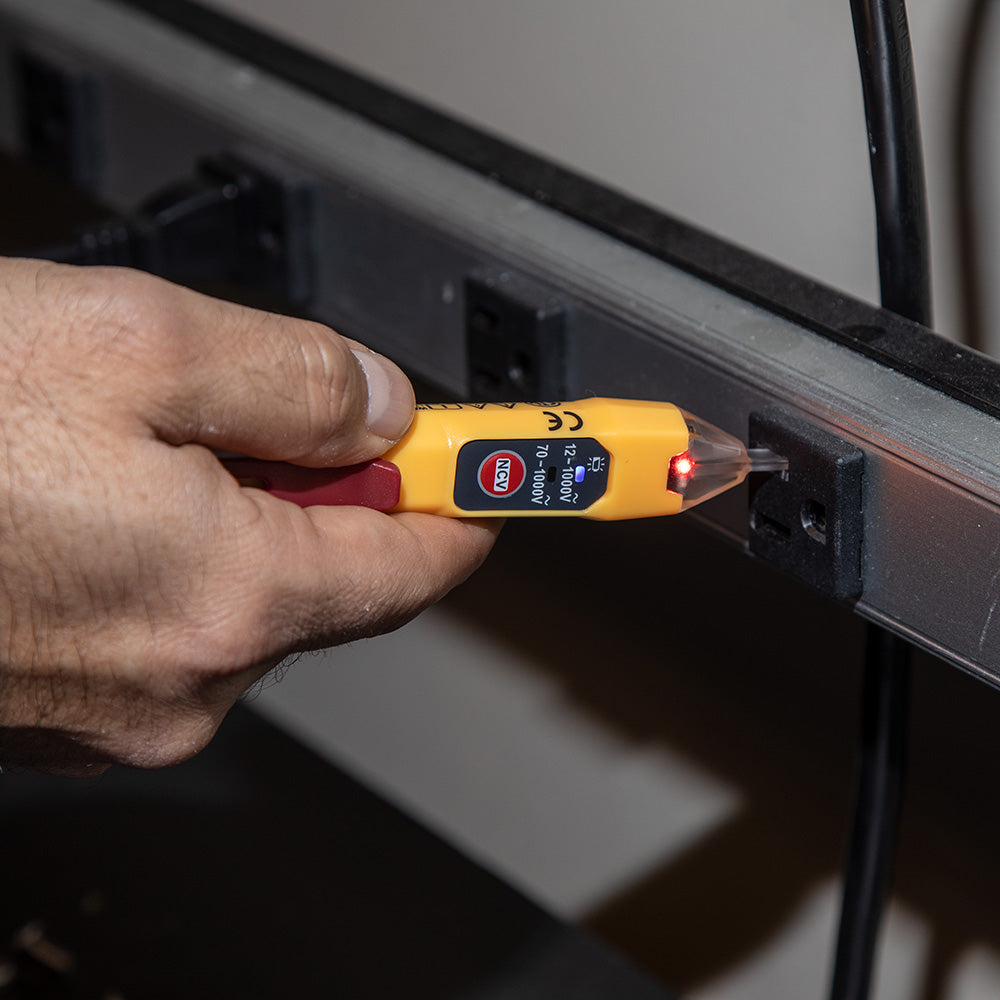

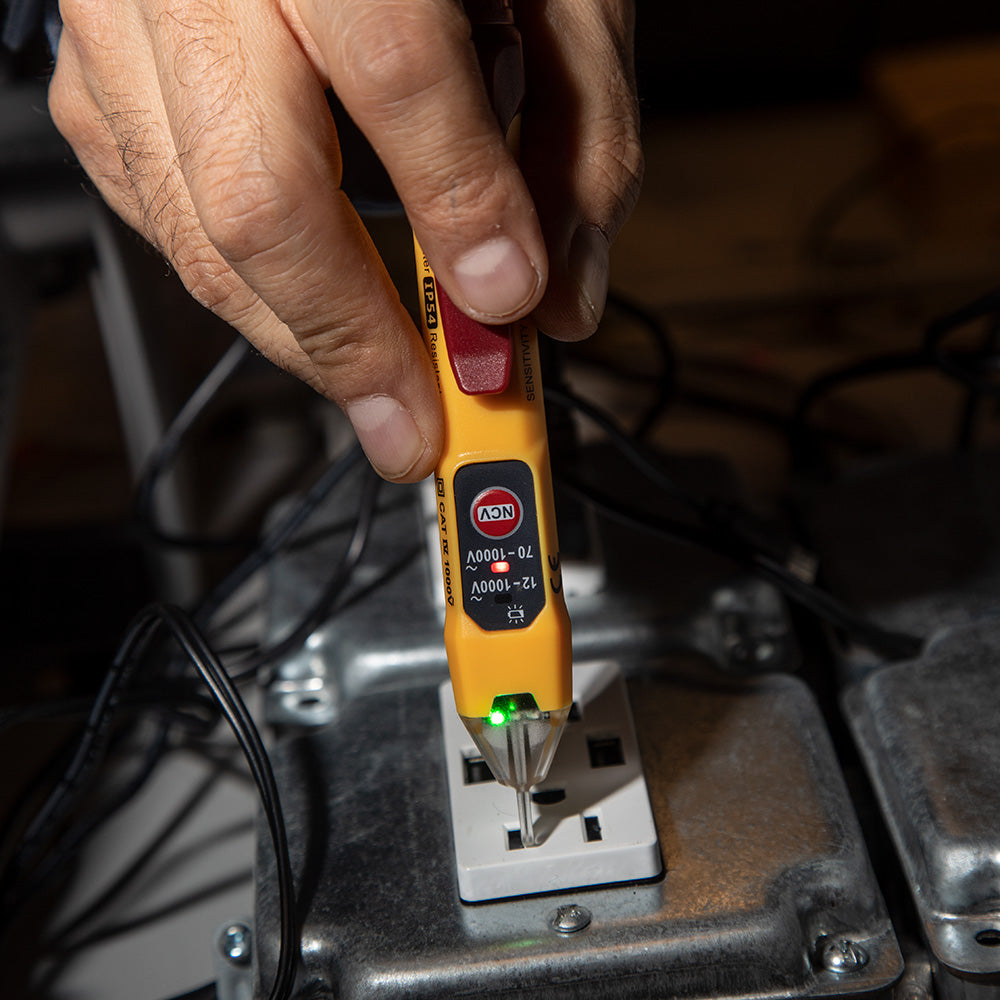

The NCVT-2P is a non-contact voltage tester that detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-2P is rugged enough for any job site.

Features

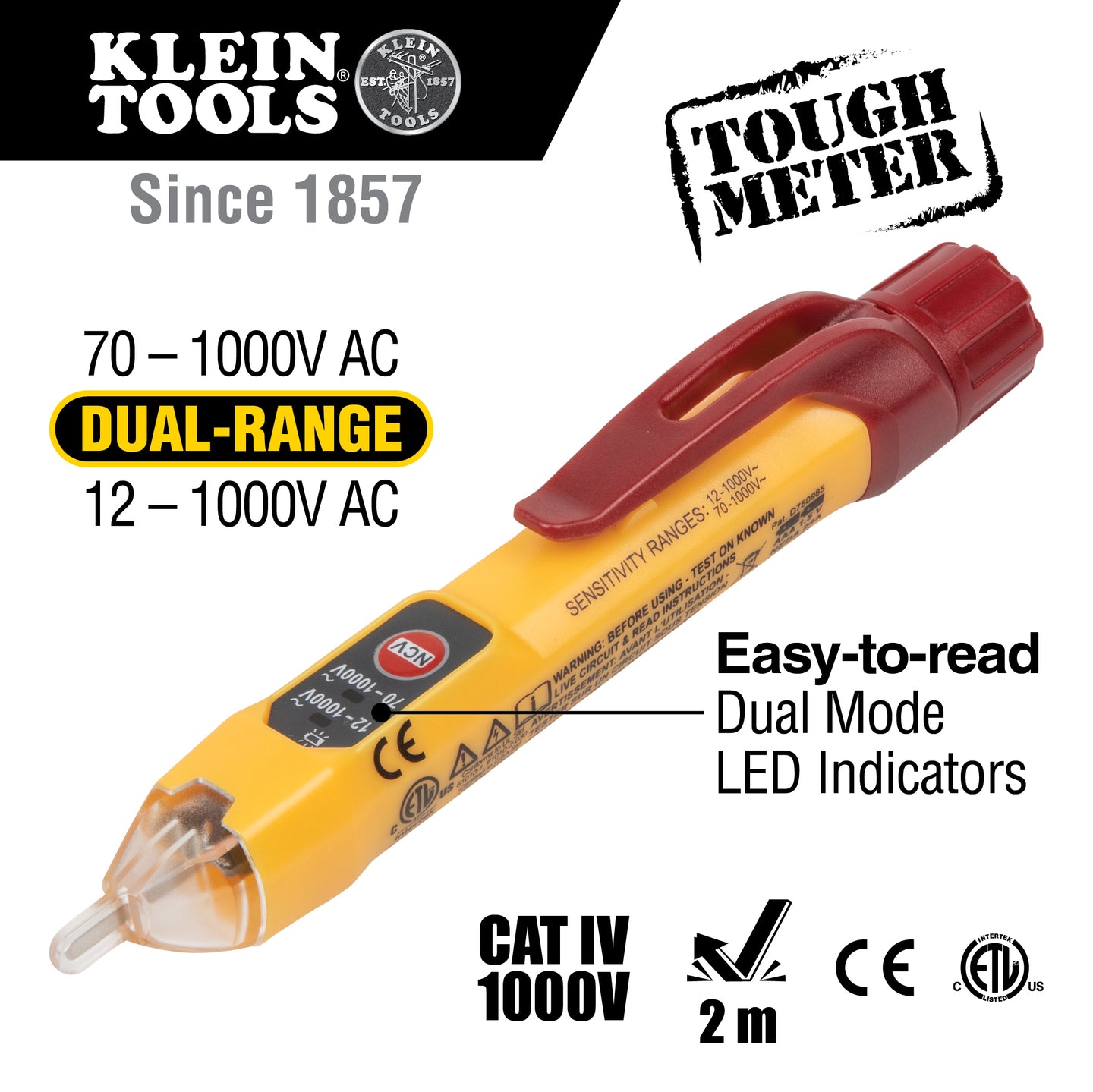

• Non contact voltage tester's dual-range capabilities allow tester to detect from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
• Electrical voltage tester detects voltage with simultaneous visual and audible indicators
• Non-contact detection of low voltage in security, entertainment, communications, environmental control, and irrigation systems
• Green light indicates no voltage
• Lightweight, compact tool with pocket clip provides convenient storage and quick access
• Auto power-off feature conserves and extends battery life
• CAT IV 1000 V rating provides expanded operation and protection

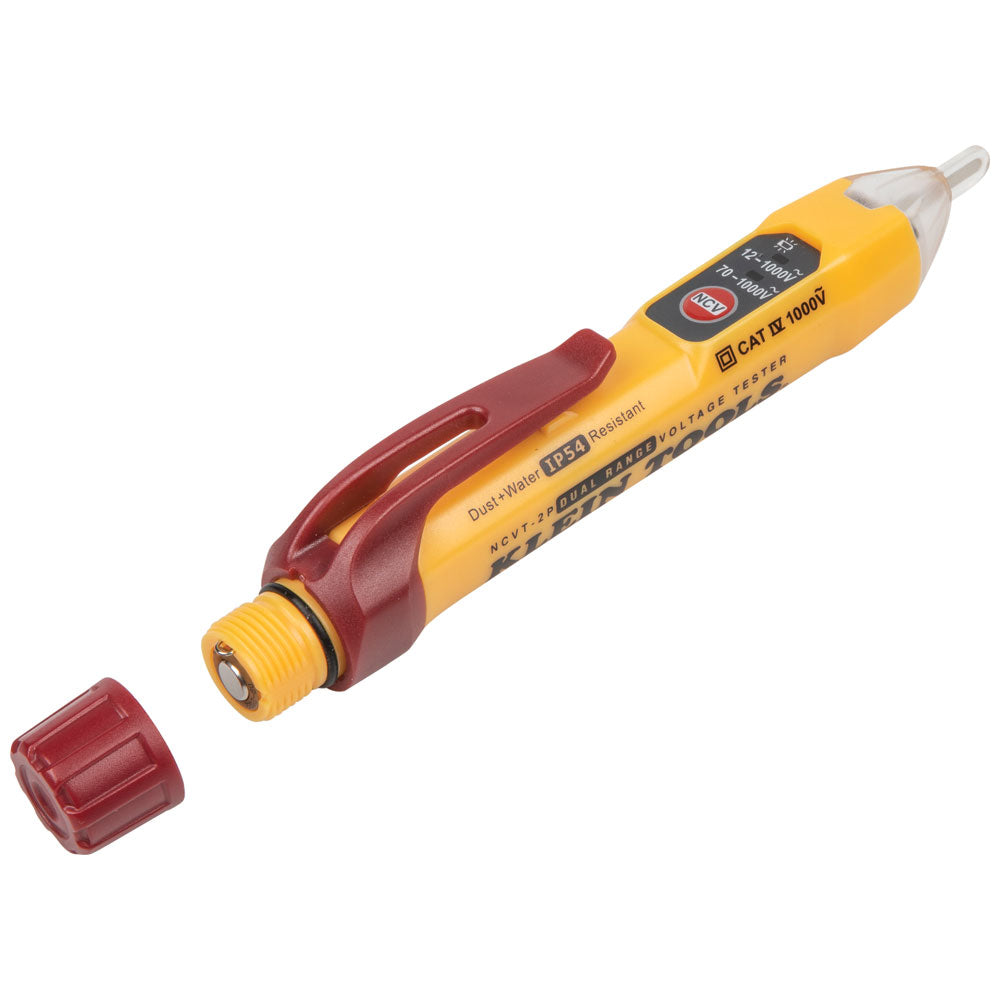

• Screw-thread battery cap with O-ring ensures protection against dust and water ingress
• 6.6-Foot (2 m) drop protection
• IP54: Dustproof and waterproof
• Conforms to CE requirements
• US Patent 10,073,142, D750,985 and other patents pending

Warnings

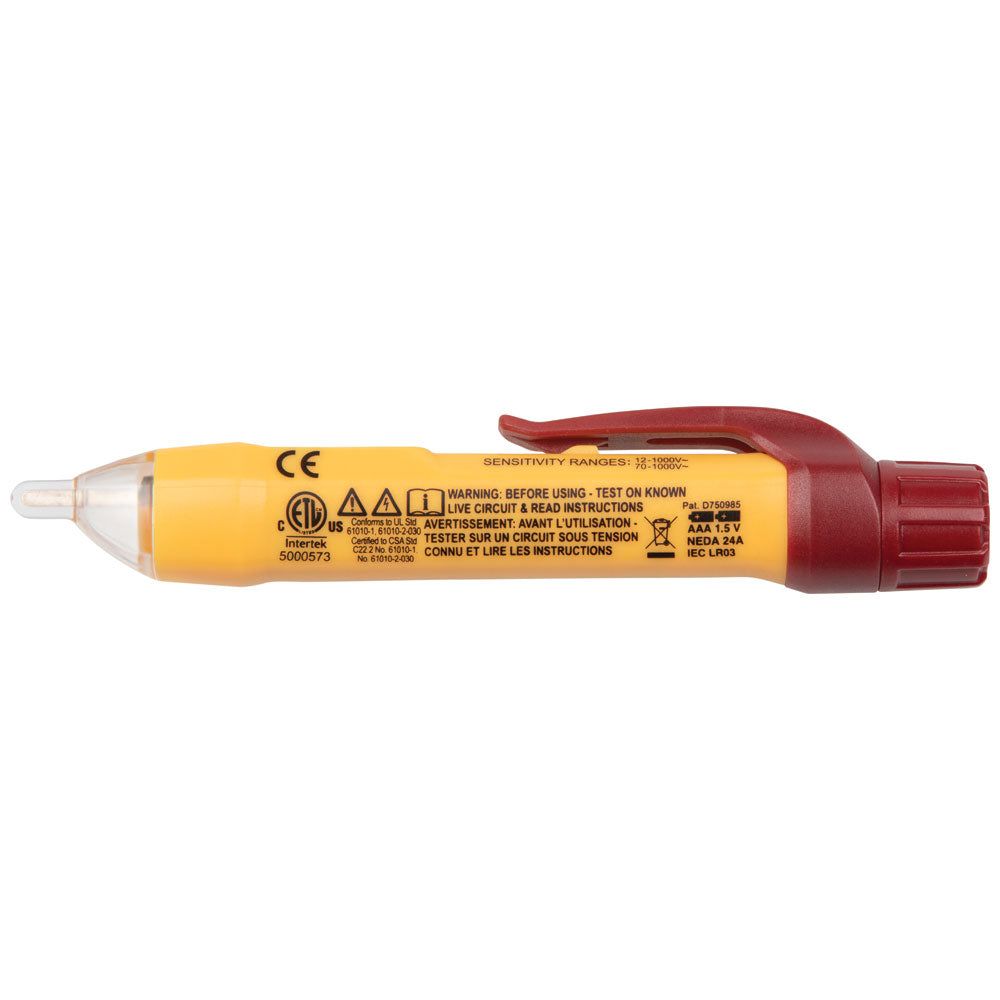

• Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
• Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.

Specification

• Brand: Klein Tools
• Product Type: Electrical Tester
• Type: Dual Range
• Material: Polycarbonate
• Drop Protection: 6.6' (2 m)
• Voltage Range 1: 12 – 1000V AC;
• Voltage Range 2: 70 – 1000V AC
• Frequency: 50 - 500 Hz
• Pollution Degree: 2
• Ingress Protection: IP54
• Batteries: 2 x AAA
• Battery Life: 142 hr
• Overall Length: 5.82''
• Overall Height: 0.86''
• Overall Width: 1.09''
• Weight: 1.7 oz
• Standard: CAT IV 1000V
• Included: NCVT; Batteries
• Application: Non-Contact Detection and Testing of AC Voltage
