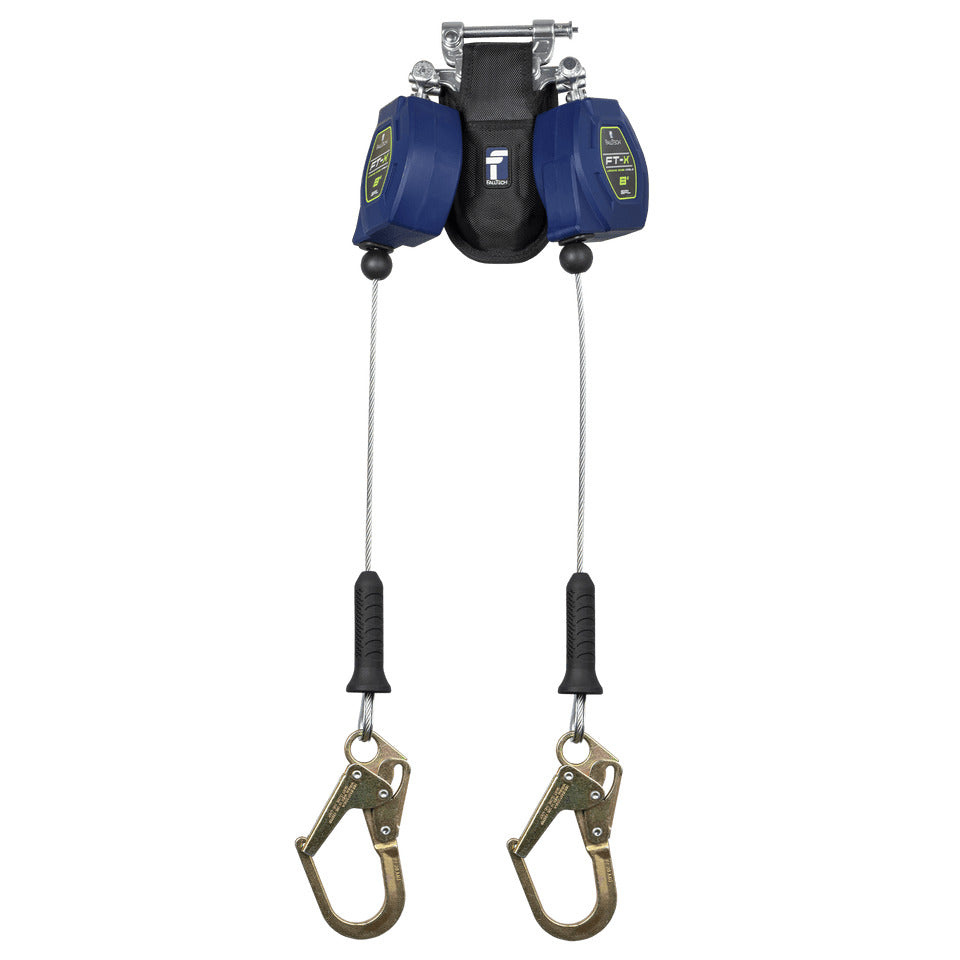

FallTech 8' FT-X Cable Class 2 Leading Edge Personal SRL-P Twin-Leg with Steel Mini Rebar Hook

The FT-X Cable Class 2 Leading Edge SRL-P is a self-retracting device for those working at height and may be subject to fall hazards, including leading edge hazards.

Features

• Lightest SRL in its class with less than 5 lbs of effective weight on the back while device is in use
• Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity
• Features comprehensive fall clearance charts and tables inside the energy absorber cover
• Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively
• Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete
• Features SpeedLink field replaceability of damaged retractable units, lowering overall cost of ownership and reducing equipment down time
• Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.
• Replacement retractable part number is 82808RP0

Specification

• Brand: FallTech
• Product Type: Self-Retracting Lifeline (SRL)
• Cable Material: 3/16" galvanized steel; 3,600 lb minimum static strength
• Energy Absorber Material: Polyester tear-away
• Anchorage Connector Material: Plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength
• Dorsal Connector Material: Aluminum alloy; 3,600 lb minimum
• Minimum Static Strength: 3,600 lb
• ANSI SRL Class/Type: Class 2 SRL-P
• Maximum Average Arrest Force: 1,350 lb
• Maximum Arrest Force: 1,800 lb
• Maximum Arrest Distance: 42"
• Maximum ANSI User Capacity: 130 to 310 lb
• Maximum OSHA User Capacity: 130 to 420 lb
• Compliant With: ANSI Z359.14-2021, OSHA 1926.502 and 1910.66 and CSA Z259.2.2-2017
