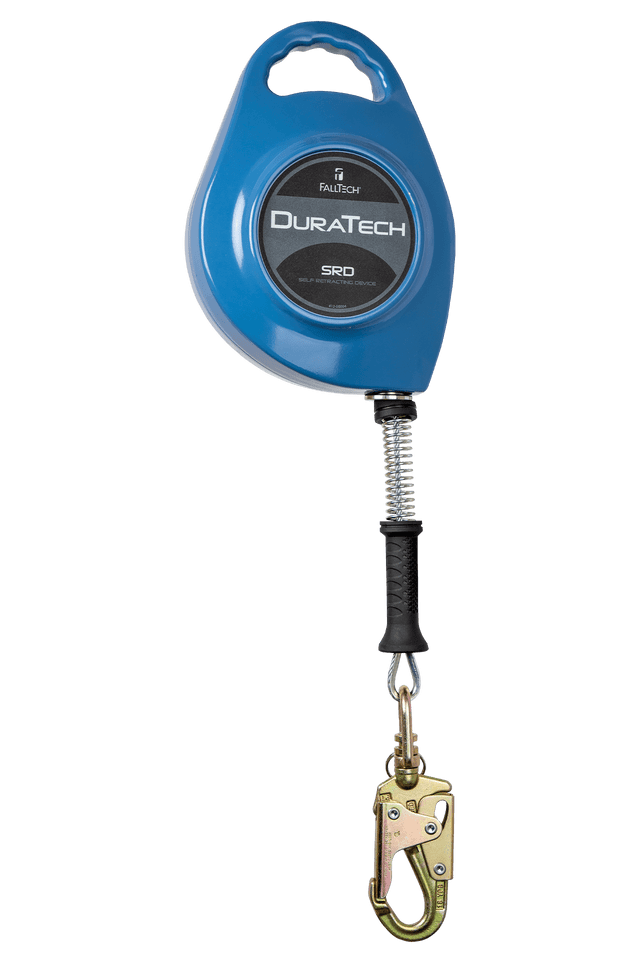

FallTech DuraTech SRL with 25' Cable and Side-Payout Aluminium Housing

The FallTech DuraTech Cable SRL is a self-retracting device for those working at height and subject to fall hazards. This product is not suitable for applications with leading-edge exposures where the lifeline of this device may come in contact with an edge during a fall event. A handle/attachment point is cast into the housing. The housing contains various lengths of lifeline composed of galvanized steel wire rope wound onto a spring-tensioned drum. The SRD lifeline is equipped with a spring bumper to reduce retraction freewheel shock loads.

Features

• 3/16" galvanized steel cable lifeline with load-indicating swivel snap hook
• Side-payout configuration delivers smooth lifeline operation
• Internal inertial braking system with dual disc brakes provides superior deceleration
• Lifeline assembly includes integrated recoil spring to reduce retraction lock-up
• Integrated lifeline hand-grip simplifies dorsal connection
• Stackable housing design and handle provide easy installation and storage

Specification

• Brand: FallTech
• Product Type: Self-Retracting Lifeline (SRL)
• Size: 25'
• Cable Material: 3/16" Galvanized steel; 3,400 lb minimum static strength
• Lifeline Connector Material: Plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength
• Minimum Static Strength: 3,600 lb

• Average Arrest Force: 1,350 lb

• Maximum Arrest Force: 1,800 lb

• Maximum Arrest Distance: 42"

• ANSI SRL Class/Type: Class 1 SRL

• Maximum ANSI User Capacity: 130 to 310 lb

• Maximum OSHA User Capacity: 130 to 310 lb
• Compliant With: ANSI Z359.14-2021, OSHA 1926.502 and 1910.66
