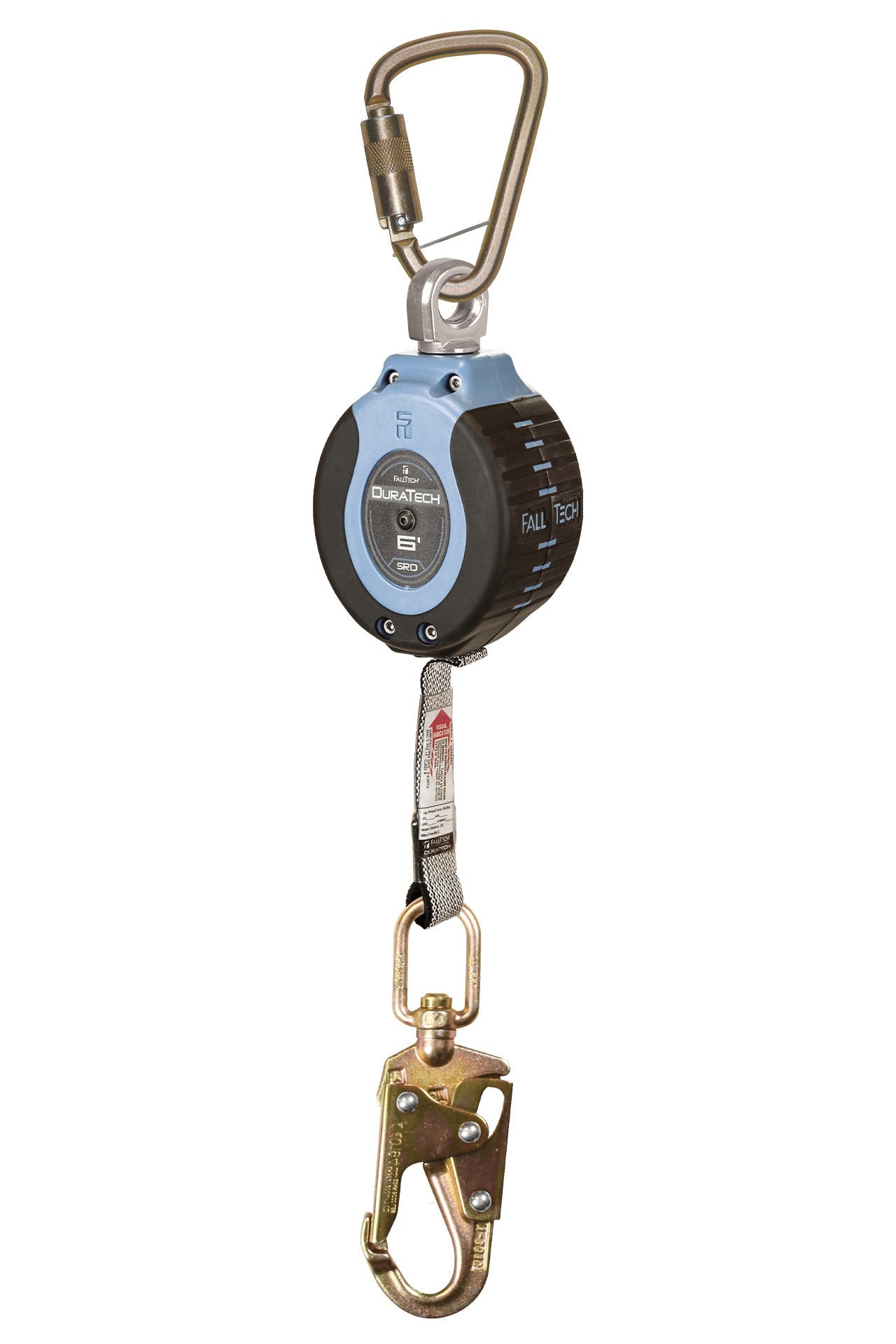

FallTech 6' DuraTech Personal SRL with Steel Swivel Snap Hook

The FallTech 6' DuraTech Web SRD is a self-retracting lifeline for those working at height. At the top of the unit, a swiveling aluminum eye provides an attachment point for a self-closing and self-locking connector. The SRD body consists of a glass-filled nylon housing that contains a 6' length of high performance polyethylene and polyester fiber webbing wound onto a spring-tensioned drum. The attachment end of the webbing may be configured with a variety of sewn-on connectors. A stitched fold in the lifeline between the housing and the leg end connector functions as a retraction stop and a fall arrest impact indicator. If the stitching is torn loose, remove the unit from service.

Feature

• Internal inertial braking system provides smooth deceleration with minimal fall forces
• Dyneema web lifeline resists abrasion while providing trusted strength
• Overmolded glass-filled nylon housing contributes unmatched impact resistance
• Integrated aluminum alloy swivel-eye helps to prevent lifeline twisting for smooth operation
• Features alloy steel swivel snap hook anchorage connector
• Includes alloy steel dorsal connecting carabiner
• May be anchored up to 2' below the dorsal D-ring for user's weighing up to 310 lb max

Specification

• Brand: FallTech
• Product Type: Self-Retracting Lifeline (SRL)
• Webbing: Dyneema/Polyester blend; 4,500 lb minimum
• Anchorage Connector: Plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength
• Dorsal Connector: Plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength
• Minimum Static Strength: 3,000 lb
• ANSI SRL Class: Class B
• Average Arrest Force: 900 lb
• Maximum Arrest Force: 1,800 lb
• Maximum Arrest Distance: 54"
• Maximum ANSI User Capacity: 130 to 310 lb
• Maximum OSHA User Capacity: 130 to 310 lb
• Compliant With: OSHA 1926.502 and 1910.66, ANSI Z359.13-2014
