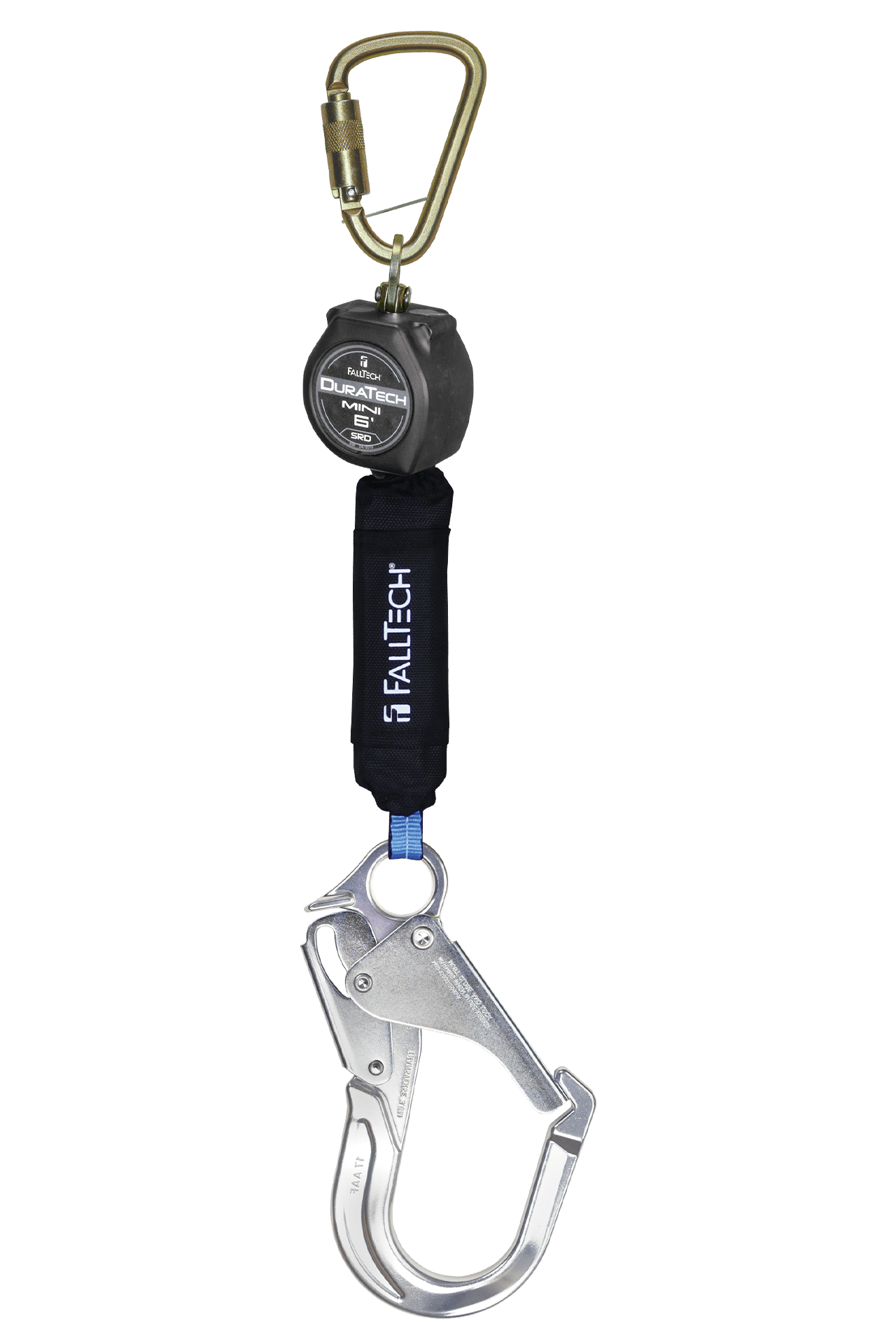

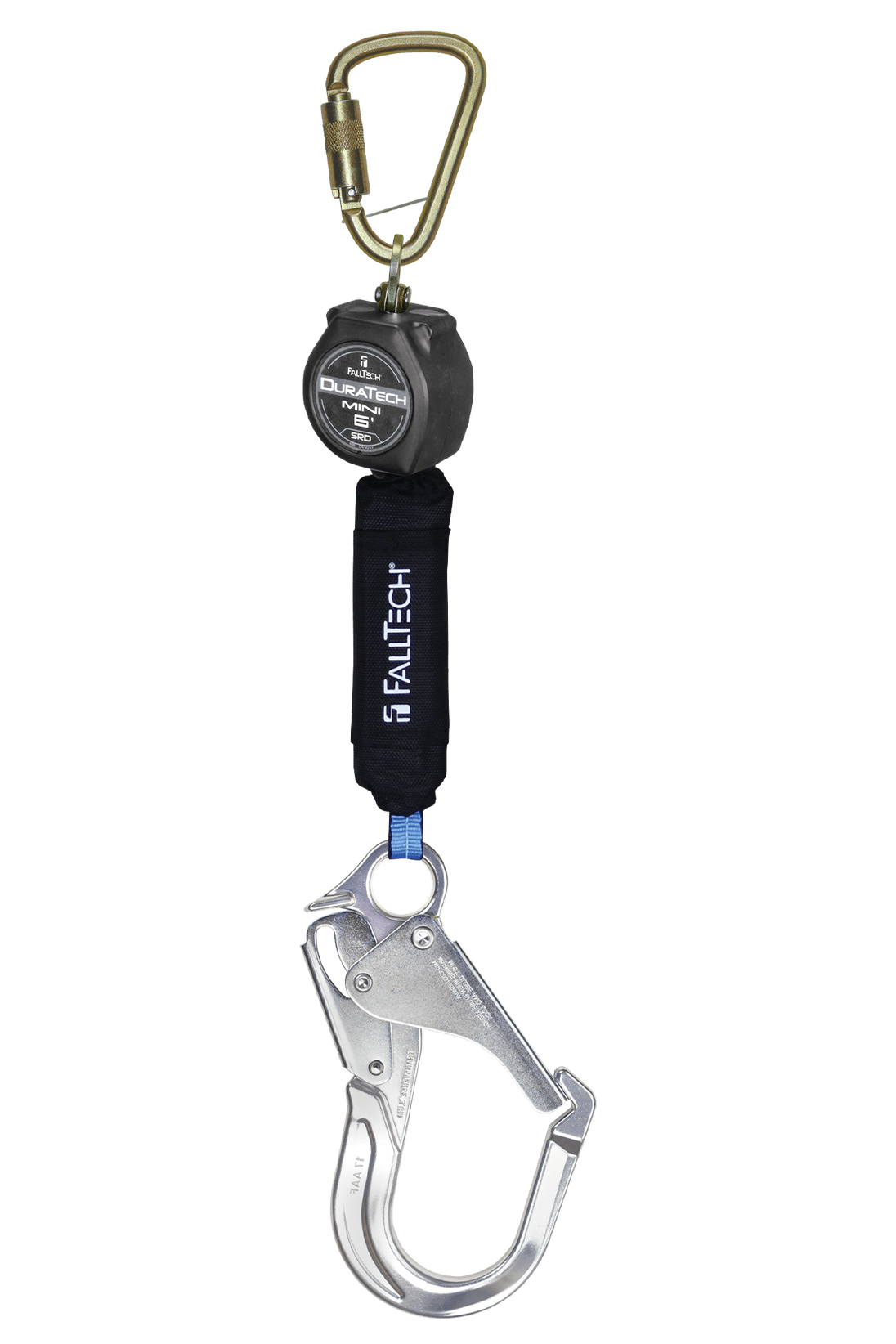

Falltech 6' DuraTech Mini Class 1 Personal SRL-P with Aluminum Rebar Hook

The FallTech DuraTech Mini SRL-P is a personal self-retracting device for those working at height and may be subject to fall hazards. This product is not suitable for applications with leading edge exposures where the lifeline of this device may come in contact with an edge during a fall event. This product is a personal SRL and may be used with the SRL housing side connected to the anchor or connected to the full body harness.

The SRL discussed, may be attached to an overhead anchorage, i.e., from directly over the user’s head, or to an anchorage at a maximum of 5’ below the user’s FBH dorsal D-ring. Below D-ring tie-off is outside the scope of ANSI Z359 and is only allowed when no edge hazards are present. At no point during a fall shall the lifeline be loaded over any edge.

Features

• Features internal locking pawls and ViewPack external energy absorber for even deceleration
• Long-wearing Dyneema web lifeline resists abrasion while providing trusted strength
• Nylon housing provides impact resistance in most worksite conditions
• Plated steel swivel-eye helps to prevent lifeline twisting and provide smooth operation
• Features aluminum alloy steel snap hook anchorage connector
• Includes alloy steel dorsal connecting carabiner
• Rebar hook features transverse load rated gate
• May be anchored up to 5' below the dorsal D-ring with no edge hazards for user's weighing up to 310 lb max

Specification

• Brand: FallTech
• Product Type: Overhead SRL
• Webbing Material: Dyneema/Polyester blend; 4,500 lb minimum.
• Energy Absorber Material: Polyester tear-away
• Anchorage Connector Material: Plated alloy steel; 5,000 lb minimum. static strength with 3,600 lb gate strength
• Dorsal Connector Material: Plated alloy steel; 5,000 lb minimum. static strength with 3,600 lb gate strength
• Minimum Static Strength: 3,600 lb
• Average Arrest Force: 900 lb
• Maximum Arrest Force: 1,800 lb
• Maximum Arrest Distance: 42"
• ANSI SRL Class/Type Class: 1 SRL-P
• Maximum ANSI User Capacity: 130 to 310 lb
• Maximum OSHA User Capacity: 130 to 310 lb
• Compliant With: ANSI Z359.11-2021, CSA Z259.10-2017, OSHA 1926.502 and 1910.66
