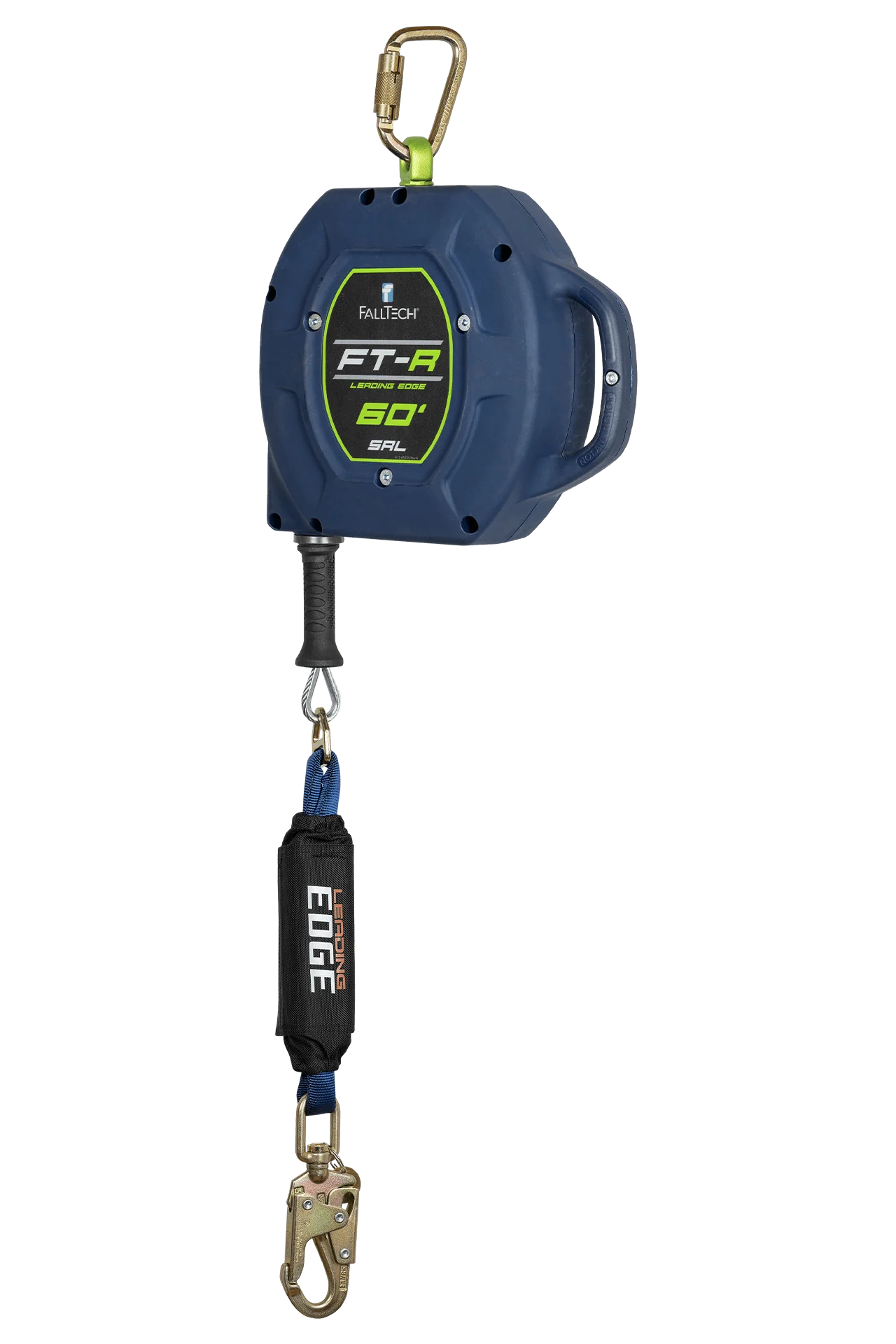

FallTech 721560LE FT-R™ Class 2 Leading Edge SRL with 60' Galvanized Steel Cable

Features

• 20% lighter than typical 30' Cable Class 2 Leading Edge SRLs
• 7/32" galvanized steel cable lifeline with swivel snap hook
• Innovative energy absorber design provides more consistent performance in all environmental conditions and features full fall clearance diagrams and charts inside the Viewpack®
• Improved internal mechanism design minimizes unintentional lockups to keep workers moving freely and productively
• Swiveling anchor and leg-end connectors plus an integrated carrying handle simplify installation and transportation

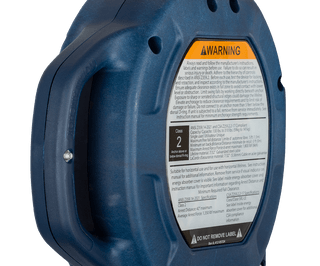

• Industry first UV-resistant and scratch resistant label keep warnings legible and units in service
• Includes steel anchorage carabiner with 3/4" gate opening
• Complies with ANSI Z359.14-2021 Class 2 SRL.

Material Specifications

Cable: 7/32" galvanized steel; 3,600 lb min. static strength

Energy Absorber: Polyester tear-away

Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

>Performance Specifications

Static Strength: 3,600 lb min.

ANSI SRL Class/Type: Class 2 SRL

Avg. Arrest Force: 1,350 lb max.

Max. Arrest Force: 1,800 lb

Max. Arrest Distance: 42"

ANSI User Capacity: 130 to 310 lb max.

OSHA User Capacity: 130 to 310 lb max.

Compliant With:

ANSI Z359.14-2021

OSHA 1926.502 and 1910.66

CSA Z259.2.2-2017
