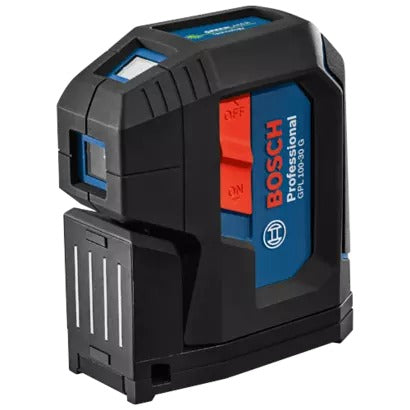

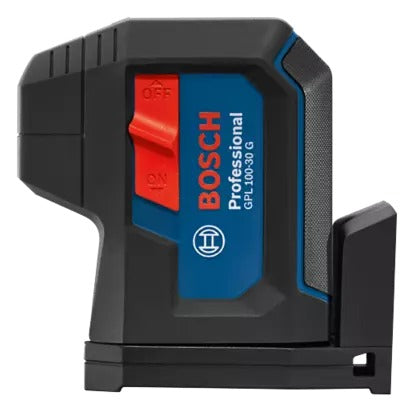

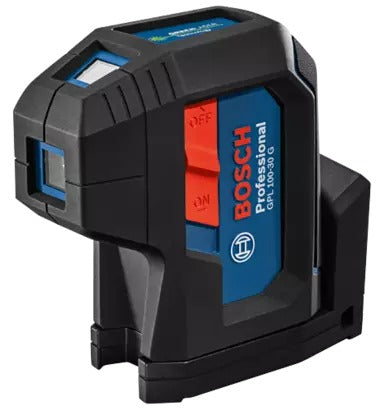

Bosch Green-Beam Three-Point Self-Leveling Alignment Laser

The Bosch GPL100-30G features a three-point, self-leveling laser with ±1/8" accuracy at 30' for up/down plumb, align and level applications. This unit features green-beam technology, which is up to 4X brighter than standard red beams. It also has the Bosch-exclusive VisiMax technology, which delivers maximum beam brightness in most jobsite conditions. The unit includes point projection to the front, so it can be used in a variety of positions for flexibility on the job. It is faster than a standard manual plumb bob. The unit includes several durability features, such as the Smart Pendulum System to lock the laser when switched off, 360 degree rotation, a hard carrying case and full rubber overmold housing. The integrated multipurpose laser mount features strong magnets and allows the user to mount the laser virtually anywhere.

Features

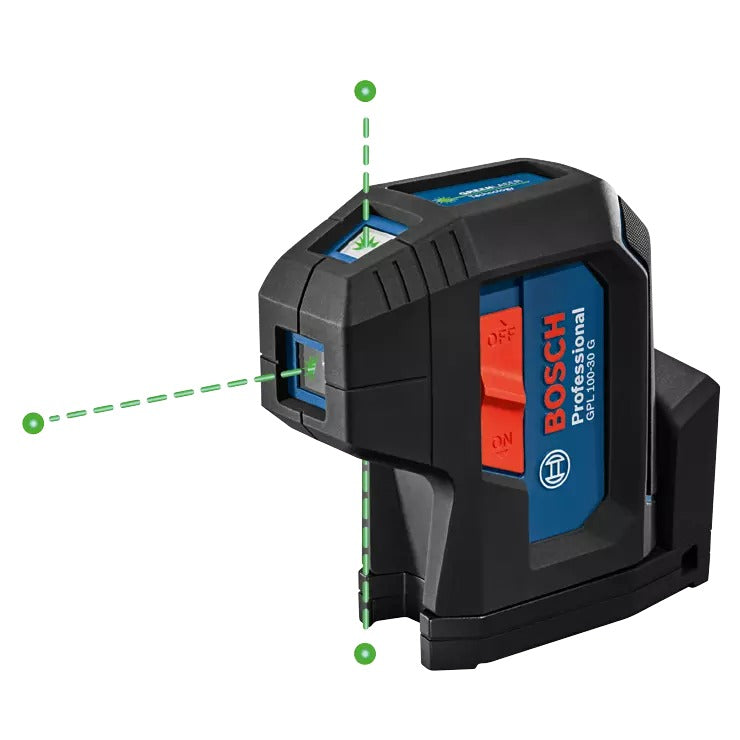

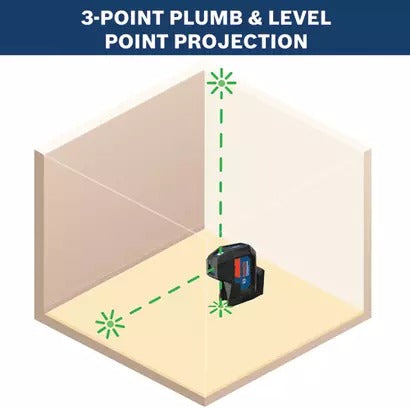

• Three-point plumb and level point projection – Accurately transfers and aligns level, plumb, 90° and grade points
• Built-in VisiMax technology – Monitors power consumption to maximize line visibility and extend battery life
• Bright green-beam laser – Up to 4X brighter than standard red beams

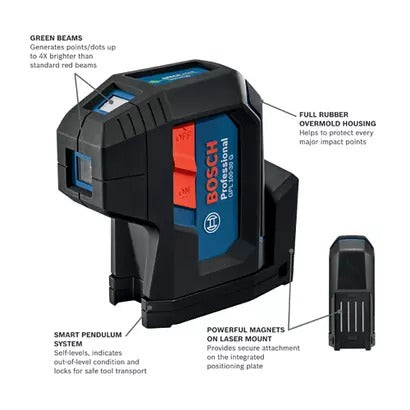

• Full rubber overmold housing – Helps to protect every major impact point, with a design similar to a roll cage
• Smart Pendulum System – Allows tool to self-level, and it indicates out-of-level condition
• Secure laser transport – After switching off, pendulum is locked, plus 360 degree rotation for extra protection

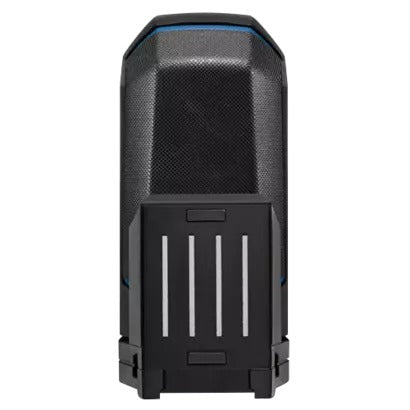

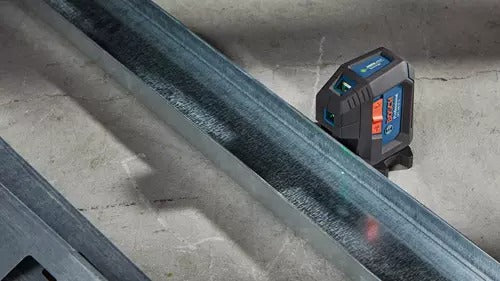

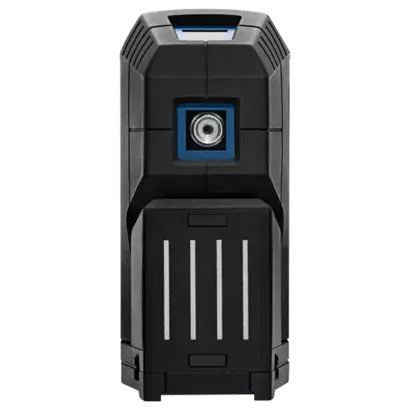

• Integrated multipurpose laser mount – Positions and mounts with magnets or threaded mounts (1/4"-20)

Works with

• Tripod, BT 150
• Telescoping Pole System
• BP350, Mounts and Positioning Devices
• BM 1, BM3, LB10, MM 2

Specification

• Brand: Bosch
• Product Type: Alignment Laser
• IP Rating: IP 65
• Laser Beam Color: Green
• Laser Diode: Class 2, 500-540 nm
• Length: 4.5"
• Leveling Type: Self-Leveling, Up to 4°
• Material: Plastic
• Mount Threading: 1/4" - 20"
• Number of Beams: 3
• Range: Up to 125'
• Weight: 0.77 lb
• Width: 2"
• Height: 4.5"
• Case Type: Hard plastic
• Warranty: 1 Year Limited

Includes

• GPL100-30G Green-Beam Three-Point Self-Leveling Alignment Laser x 1
• Built-In Multipurpose Mount x 1
• AA Batteries x 2
• Hard Carrying Case x 1
