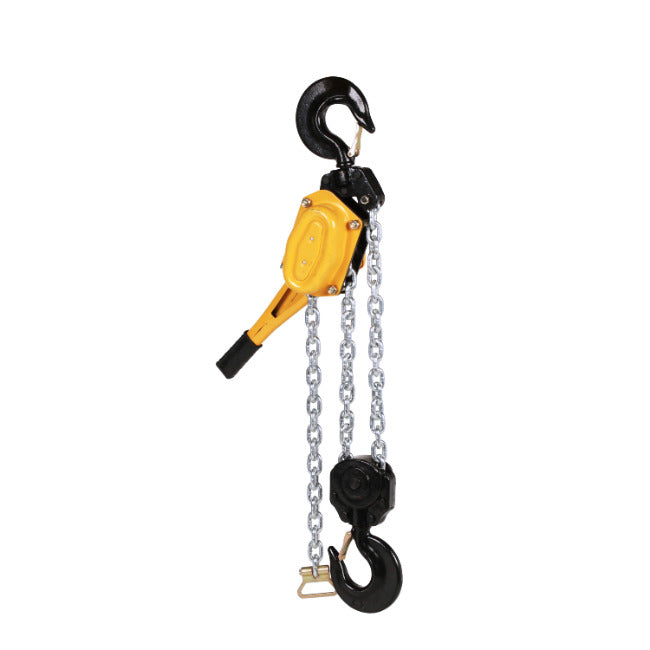

ALL MATERIAL HANDLING LC SERIES G70 LEVER CHAIN HOIST

Easy One Hand Operation and Setup, When the selector is in neutral and no load is present then free chain mode is entered. The chain can be pulled through the hoist by a pull handle for easy set up and load attachment before engaging the selector for pulling. The pull handle also acts as a chain stop. Short ratchet strokes of a non-slip rubber grip lever and 360 degree rotation requires minimal space for operation. The pull force to operate may be 20 to 30% less than others.

Light weight and durable formed steel enclosure protects from contamination and can be quickly disassembled for fast and easy maintenance. Powder coating and plated finishes on exposed components are used for resistance to corrosion.

Internal parts are heat treated for strength and reliability with fully enclosed gearing to protect from contamination. All gears and shafts run on caged roller bearings including the lift wheel which is machined for smooth operation and long life.

Automatic Weston style mechanical load brake is self-adjusting with double pawls, asbestos-free brake discs and is surrounded by enclosure to limit contamination. The brake will react to inertia of a descending load regardless of the operator setting. (For details see AMH Service Bulletin SB002)

Drop forged Alloy hooks are designed to stretch when overloaded before chain failure and are equipped with heavy duty cast steel safety latch attached by a bolt and lock nut. The top hook mounting articulates to aid in rigging and help insure straight line loading between hooks.

Each hoist is proof tested to min. of 1.25 x WLL and shipped with a certification of test matching the individualized serial number stamped in the nameplate.

Features

• Operation in any orientation is assured by a fully enclosed horseshoe shape chain guard keeping the load chain in contact with the lift wheel

• Precision hoist load chain with strength of G80 chain

• Meets ASME B30.21, OSHA, and NASA-STD-8719.9

• Available in standard lifts of 5, 10 and 20 feet and spare parts are stocked in USA

• Unchained units and bulk chain are also available for customers to make their own custom lifts if assembled and tested per ASME B30.21 before being placed into service.

Specification

• Brand: All Material Handling
• Product Type: Lever Chain Hoist
• Shipyard Hook: S Option
