Features

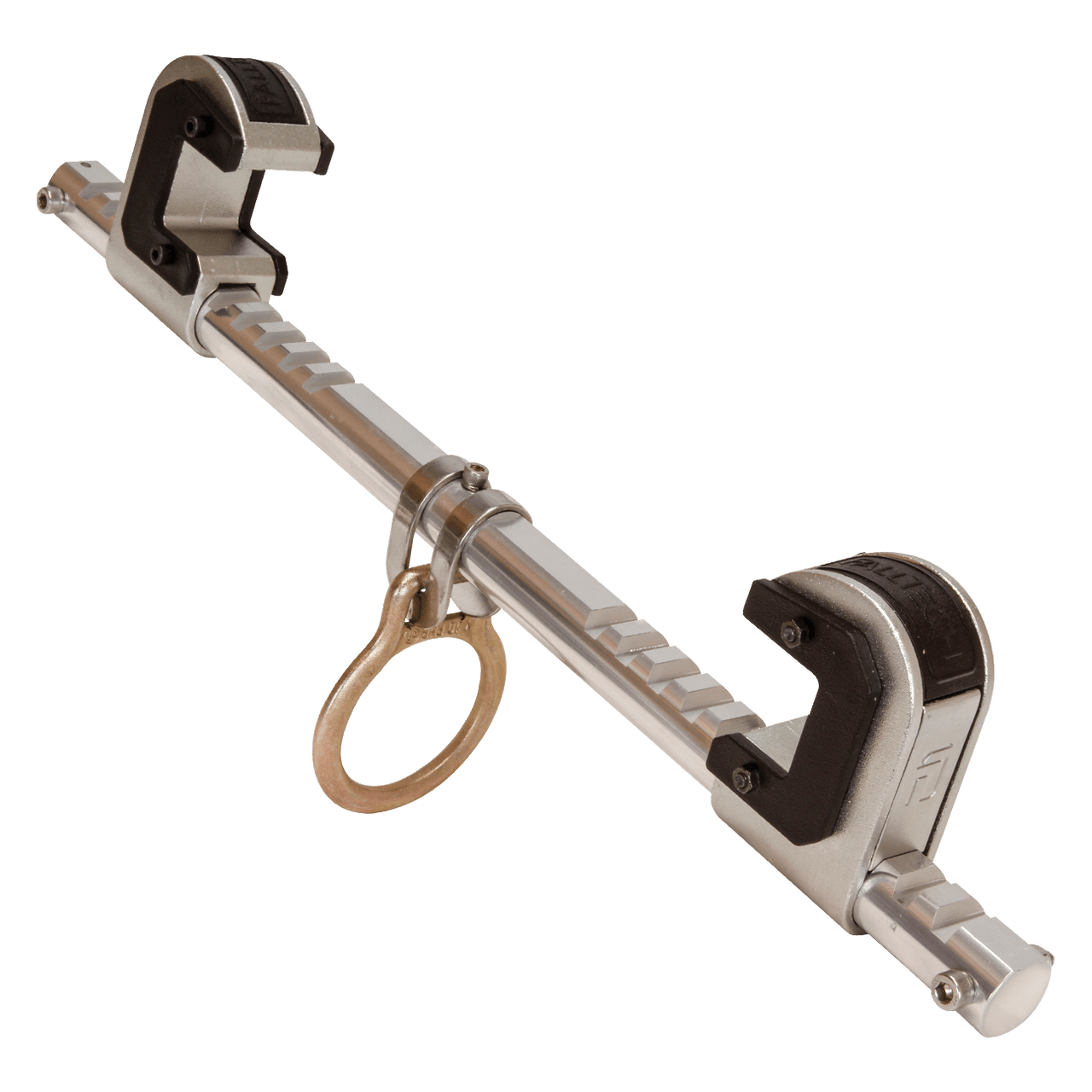

- Features aluminum crossbar and steel clamping jaws with nylon slider pads
- Fits beam flanges from 3" to 14" wide and up to 1-1/4" thick
- Dual adjusting jaws include concealed locking latches
- Alloy steel D-ring remains centered on crossbar
- For temporary mobile use on horizontal I-beams
Specification
- Brand: FallTech
- Product Type: Trailing Beam Anchor
- Size: 14"
- D-Ring Material: Plated alloy steel; 5,000 lb minimum static strength
- Crossbar Material: Aluminum alloy
- Clamp Jaws Material: Plated alloy steel
- Minimum Static Strength: 5,000 lb
- Maximum ANSI User Capacity: 130 to 310 lb
- Maximum OSHA User Capacity: 130 to 425 lb
- Compliant With: ANSI Z359.18-2017, OSHA 1926.502 and 1910.66
Downloads
- Regular price
- $199.00
Frequently Bought Together
-
Vendor: FallTech
FallTech 772100 100' 4-Person Temp Rope HLL System
Regular price $1,064.27 -
Vendor: FallTech
FallTech 7711 8" All-steel Beam Trolley Anchor
Regular price $338.00 -
Vendor: FallTech
FallTech 771002K 100' Temporary Rope HLL System; 2-person with Kernmantle Rope
Regular price $697.97 -
Vendor: FallTech
FallTech 7533 12 ¼" Trailing Beam Anchor with Dual-clamp Adjustment
Regular price $225.00
Product Description
Features
- Features aluminum crossbar and steel clamping jaws with nylon slider pads
- Fits beam flanges from 3" to 14" wide and up to 1-1/4" thick
- Dual adjusting jaws include concealed locking latches
- Alloy steel D-ring remains centered on crossbar
- For temporary mobile use on horizontal I-beams
Specification
- Brand: FallTech
- Product Type: Trailing Beam Anchor
- Size: 14"
- D-Ring Material: Plated alloy steel; 5,000 lb minimum static strength
- Crossbar Material: Aluminum alloy
- Clamp Jaws Material: Plated alloy steel
- Minimum Static Strength: 5,000 lb
- Maximum ANSI User Capacity: 130 to 310 lb
- Maximum OSHA User Capacity: 130 to 425 lb
- Compliant With: ANSI Z359.18-2017, OSHA 1926.502 and 1910.66
