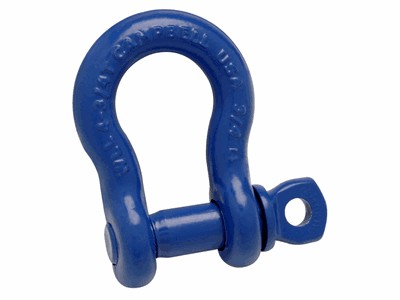

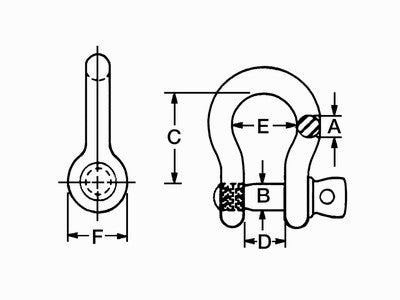

Campbell 5411005 5/8" anchor shackle Campbell 5411005 diagram

Frequently Bought Together

Total price $204.56

Product Description

Features

  • Shackle bodies are drop-forged carbon steel
  • Self colored (Painted Blue)
  • C-419-S shackles meet the design requirements of federal specification RR-C-271, Type IVA, Grade A, Class 2
  • Pins and bolts are heat-treated and made of alloy steel

Specifications

  • Brand: Campbell
  • Product Type: Anchor Shackle
  • Locking Type: Threaded Pin
  • Working Load Limit Short Ton: 3-1/4
  • Length Tolerance (+/-): 1/8"
  • Width Tolerance (+/-): 1/8"
  • Pin Size: 3/4"
  • Bail Size: 5/8"
  • Weight: 1-1/2 lb
  • Finish: Self-Colored
  • Inner Width: 1-9/16"
  • Inner Length: 2-7/16"
  • Opening Size: 1-1/16"
  • Eye Outer Size: 1-7/16"
  • Material: Forged Carbon Steel
